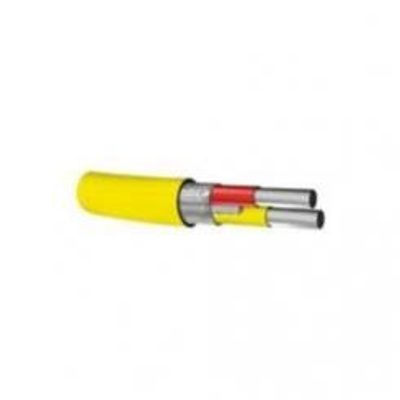

20 AWG 1 Pair Solid Type KX Thermocouple Wire, Foil Shield Power Limited Tray Cable, PLTC/ITC, 300V

SKU TKXTSOL201P

$

0.880000

0.880000

/ft
How will you purchase this wire?
0.880000 0.880000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

20 AWG 1 Pair Solid Type KX Thermocouple Wire, Foil Shield Power Limited Tray Cable, PLTC/ITC, 300V

Color Length (ft.) Price
N/A

Length (ft.)

$0.88
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$440.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    20 AWG

  • # of Conductors

    2 Conductors

  • # of Pairs

    1 Pair

  • O.D. (Inches)

    0.2

  • Sunlight Resistant

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

20 AWG 1 Pair Solid Type KX Thermocouple Wire, Foil Shield Power Limited Tray Cable, PLTC/ITC, 105°C, 300V

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 2000'. Please call for longer put ups.

Applications:
Used to economically extend the thermocouple signal in aluminum and steel plants, pulp and paper, glass, automotive, petrochemical, heat treating and food processing industries.

Conductor:
Solid thermocouple extension wire conforming to limits of error listed in ISA/ANSI MC96.1

Insulation:
PVC

Jacket:
PVC

Color Code:
Per ISA/ANSI MC96.1

Standards:
Meets the requirements of UL 13 and passes the IEEE 1202 flame test

Specifications*:

Size: 20 AWG
Number of Conductors: 2
Outside Diameter: 0.200 inches
Temperature: 105°C
Voltage: 300V



*Data provided on this page is subject to change based on different manufacturers variances.
