$190.00

In Stock

Belden 8772 equals General C2525A, NEC Type CM (UL) c(UL) CMH

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

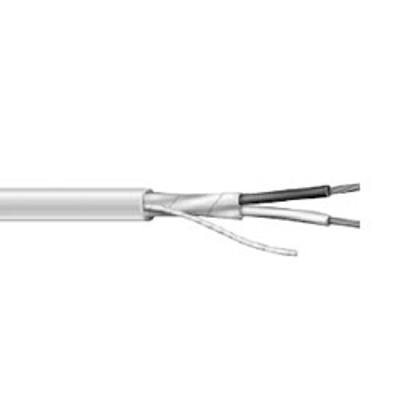

20 AWG, 3 Conductor, Communication Cable, Foil Shield, 500ft or 1000ft Spool

SKU
COMC2525A

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 8772 equals General C2525A, NEC Type CM (UL) c(UL) CMH

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Recording studios and sound stages, Broadcast and sound systems, Computers, Industrial equipment control, Suggested voltage rating: 300 volts

Compliances:
- UL Style 2093 (UL: 60°C, 300V)
- NEC Article 800 Type CM (UL: 75°C)
- CSA CMG (CSA 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMG Flame Test

Conductor:
Fully annealed, stranded tinned copper per ASTM B-33

Insulation:
Premium-grade, color-coded polyethylene

Shield:
- 100% aluminum/polyester, 25% overlap, foil facing out
- Stranded tinned copper drain wire

Jacket:
PVC, gray
-20°C to +80°C

Specifications*:

Size: 20 AWG
Number of Conductors: 3
Conductor Stranding: 7/28
Nominal Insulation Thickness: 0.016 inches
Nominal Jacket Thickness: 0.030 inches
Outside Diameter: 0.213 inches
Nomonal Cap. pF/ft: A-21.0, B-37.0

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size20 AWG
# of Conductors3 Conductors
O.D. (Inches)0.213 in.
Alt to Belden #8772
ShieldedYes
Shield TypeOverall Foil Shield
