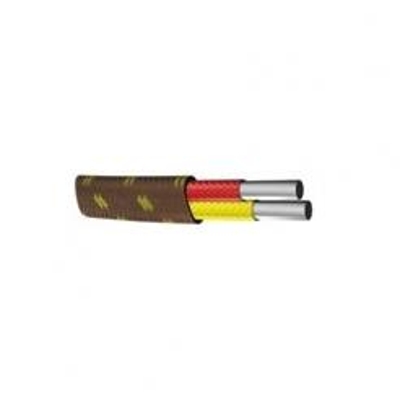

20 AWG 2 Conductor Stranded Type K Thermocouple Wire, 482°C
20 AWG 2 Conductor Stranded Type K Thermocouple Wire, Glass Braid Insulation/Jacket, 482
Product Details
Learn everything you want to know about this product to make an informed purchase20 AWG 2 Conductor Stranded Type K Thermocouple Wire, 482°C
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 200' to maximum 2000'. Please call for longer put ups.
Applications:
Ideal for general applications requiring moderate abrasion, moisture resistance, and wide temperature capabilities.
Description:
Type K
Positive leg: Chromel
Negative leg: Alumel
Conductor:
Stranded Copper
Insulation:
Glass Braid
Jacket:
Glass Braid
Color Code:
Standard ISA/ANSI color coding is used on all thermocouple wire when type of insulation permits. In color coding, the right is reserved to include a tracer to identify the ANSI type, ISA/ANSI Type K color code: positive leg (Chromel) is yellow, negative leg (Alumel) is red, jacket is brown
Specifications*:
Size: 20 AWG
Number of Conductors: 2
Outside Diameter: 0.060 x 0.108 inches
Temperature: 482°C
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 20 AWG |
# of Conductors | 2 Conductors |
O.D. (Inches) | 0.060 x 0.108 in. |
