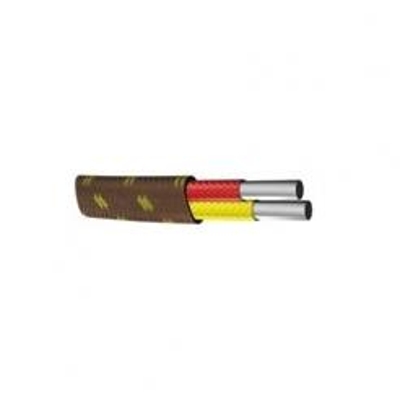

20 AWG 2 Conductor Solid Type K Thermocouple Wire, Glass Braid Insulation/Jacket, 482C

SKU TKTSOL202C

$

0.920000

0.920000

/ft
How will you purchase this wire?
0.920000 0.920000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

20 AWG 2 Conductor Solid Type K Thermocouple Wire, Glass Braid Insulation/Jacket, 482C

Color Length (ft.) Price
N/A

Length (ft.)

$0.92
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$460.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    20 AWG

  • # of Conductors

    2 Conductors

  • O.D. (Inches)

    0.056 x 0.100 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

20 AWG 2 Conductor Solid Type K Thermocouple Wire,  482°C

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 200' to maximum 2000'. Please call for longer put ups.

Applications:
Ideal for general applications requiring moderate abrasion, moisture resistance, and wide temperature capabilities.

Description:
Type K Thermocouple Wire
Positive leg: Chromel
Negative leg: Alumel

Conductor:
Solid Copper

Insulation:
Glass Braid

Jacket:
Glass Braid

Color Code:
Standard ISA/ANSI color coding is used on all thermocouple wire when type of insulation permits. In color coding, the right is reserved to include a tracer to identify the ANSI type, ISA/ANSI Type K color code: positive leg (Chromel) is yellow, negative leg (Alumel) is red, jacket is brown

Specifications*:

Size: 20 AWG
Number of Conductors: 2
Outside Diameter: 0.056 x 0.100 inches
Temperature: 482°C



*Data provided on this page is subject to change based on different manufacturers variances.
