Thermostat Wire, 250ft and 500ft Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft.
Add a length

 Free Shipping on all orders over $1000

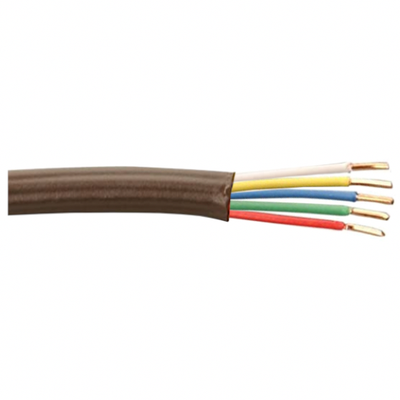

20/5C Thermostat Wire, 500ft Spool

SKU
THM20s5C

Product Details

Learn everything you want to know about this product to make an informed purchase

Thermostat Wire, 60°C, 150 Volt, UL 13, Type CL2

Applications:
PVC Thermostat Cable is primarily used for power limited circuits such as thermostats, air conditioning, heat pumps, bell and alarm systems, signals systems, door bells and remote control units where the voltage does not exceed 30 volts.

Standards:
- UL 13, Type CL2
- NEC Article 725

Conductors:
Solid soft drawn copper per ASTM B-3

Color Code:
5 Conductors – Red, White, Green, Blue, Yellow

Insulation:
Premium-grade, heat and moisture resistant color-coded PVC

Jacket:
Polyvinylchloride (PVC), which is heat, moisture and sunlight resistant.
Temperature rating is -20°C to +60°C

Specifications*:

Size: 20 AWG
Number of Conductors: 5
Conductor Strand: Solid
Insulation Thickness: 0.006 inches
Outside Diameter: 0.148 inches
Weight per foot: 0.024 lbs

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size20 AWG
# of Conductors5 Conductors
Conductor MaterialBare Copper
O.D. (Inches)0.148
Jacket ColorBrown
