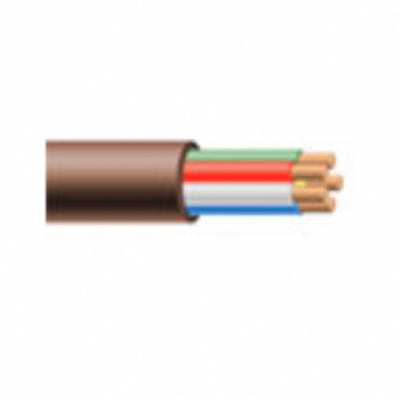

20/3C Thermostat Wire, 500ft Spool

SKU THM20s3C

$

0.132400

0.132400

/ft
How will you purchase this wire?
0.132400 0.132400
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

20/3C Thermostat Wire, 500ft Spool

Grouped product items
Color Length (ft.)
Brown Length 500 ft.
$66.20
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Jacket Color

    White;Brown

  • Wire Size

    20 AWG

  • # of Conductors

    3 Conductors

  • Conductor Material

    Bare Copper

  • O.D. (Inches)

    0.124

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Thermostat Wire, 60°C, 150 Volt, UL 13, Type CL2

Applications:
PVC Thermostat Cable is primarily used for power limited circuits such as thermostats, air conditioning, heat pumps, bell and alarm systems, signals systems, door bells and remote control units where the voltage does not exceed 30 volts.

Standards:
- UL 13, Type CL2
- NEC Article 725

Conductors:
Solid soft drawn copper per ASTM B-3

Color Code:
3 Conductors – Red, White, Green

Insulation:
Premium-grade, heat and moisture resistant color-coded PVC

Jacket:
Polyvinylchloride (PVC), which is heat, moisture and sunlight resistant.
Temperature rating is -20°C to +60°C

Specifications*:

Size: 20 AWG
Number of Conductors: 3
Conductor Strand: Solid
Insulation Thickness: 0.006 inches
Outside Diameter: 0.124 inches
Weight per foot: 0.015 lbs

*Data provided on this page is subject to change based on different manufacturers variances.
