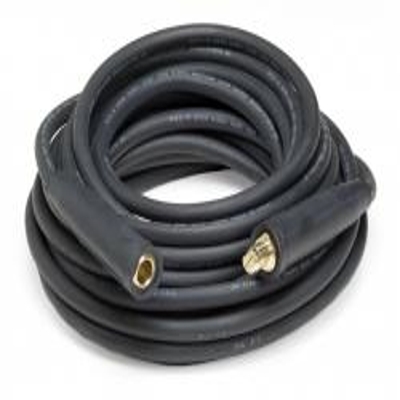

2 AWG Welding Cable Lead w/ Lenco Male & Female Connectors, 25ft, 50ft or 100ft

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

2 AWG Welding Cable Lead w/ Lenco LC10 Male & Female Connectors, 25ft Lead

SKU
WCL2MFL

Product Details

Learn everything you want to know about this product to make an informed purchase

***SHIPS WITHIN 3-4 BUSINESS DAYS FROM THE FACTORY***

2 AWG Welding Cable Lead w/ Lenco Male & Female Connectors, 25ft, 50ft or 100ft

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
2 Gauge Welding Lead, 2 AWG Welders Lead

Features:
Rugged jacket, good flexibitlty. Multiple colors available. Resists abrasion, cut, tear, flame, grease, oil & water.

Jacket:
EPDM jacket.  Temperature range: -50ºC to +105ºC. Black, blue, green, red, yellow colors available.

Standards:
RoHS Compliant

Conductor:
Fully annealed stranded bare copper

Connectors:
1 Lenco LC10 Male Black Connector and 1 Female Lenco LC10 Black Connector

Specifications*:

Size: 2 AWG
Conductor Strand: 623/.010
Outside Diameter: .422 inches
Weight: 0.238 lbs per ft
Current Amps: 200
Resistance Ohms/1000': .174



More Information
StockedYes
Wire Size2 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or Solid Stranded
O.D. (Inches)0.422
