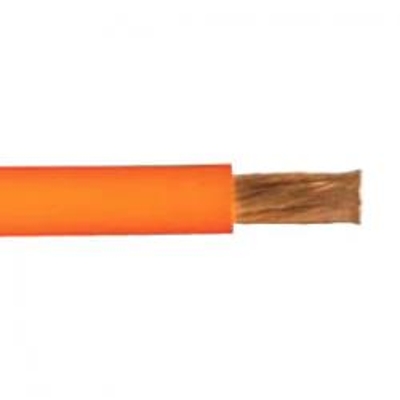

2 AWG Welding Cable Class M UL/CSA
Product Details
Learn everything you want to know about this product to make an informed purchase#2 Welding Cable Class M
Class M welding cable offers flexibility and durability superior to class K welding cable.
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.
Color:
Orange
Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.
Also Known As:
temporary power, flexible cable, 600 volt cable, copper cable, welders cable, hurricane cable, etc.
Features:
Excellent flexibility to last longer in flex applications. Abrasion-resistant. Resists oils and solvents. Rated -50ºC for use in cold environments. Weather-resistant. Sunlight-resistant. Ozone-resistant. Safety-colored for high visibility. Assured longer service life, saving money in replacement costs, maintenance cost and downtime.
Jacket:
Temperature range: -50ºC to +90ºC
Standards:
UL Listed
CSA Certified
MSHA Approved
Meets UL Vertical Flame Test per UL 854
RoHS Compliant
Conductor:
Fully annealed stranded bare copper per ASTM B-172 Class M
Specifications*:
Size: 2 AWG
Conductor Strand: 1666/34
Outside Diameter: 12.07 mm / 0.475 inches
Weight: 0.270 lbs per ft
Current Amps: 190 (For 600 Volt In-Line Applications)
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 2 AWG |
# of Conductors | 1 Conductor |
O.D. (Inches) | 0.475 |
Ampacity | 190 |
