In Stock

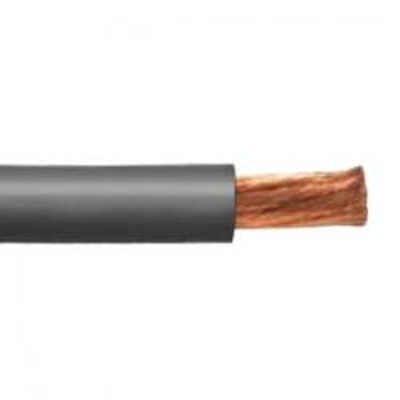

Stage Lighting Cable. Cut to length - sold by the Foot.
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.
Color:
Black
Applications:
Portable power systems. Entertainment industry activities such as theater, television, night clubs, motion pictures, mobile communication vans, spotlights and sound systems. Other similar applications that would require temporary power.
Features:
Water-resistant. Sunlight-resistant. Designed to withstand severe environmental conditions. Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals. Meets or exceeds flame test requirements of MSHA, CSA and UL.
Jacket:
Temperature range: -50ºC to +105ºC
Standards:
UL Listed
CSA Certified
RoHS Compliant
Conductor:
Fully annealed stranded bare copper per ASTM B-172
Specifications*:
Size: 2 AWG
Conductor Strand: 646/30
Outside Diameter: 13.72 mm / 0.540 inches
Weight: 0.300 lbs per ft
What is the ampacity of 2 AWG Stage Lighting Cable? 190 Amps
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Wire Size | 2 AWG |
| # of Conductors | 1 Conductor |
| O.D. (Inches) | 0.54 |
| Ampacity | 190 |
