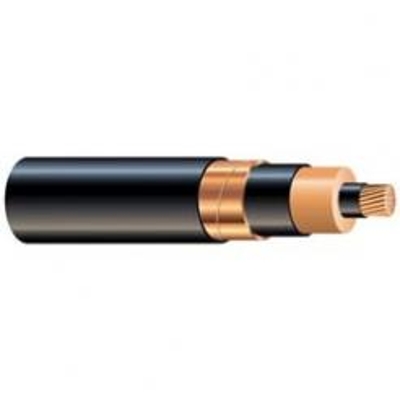

2 AWG MV-105, 5kV/8kV, EPR/PVC Power Cable w/ Copper Tape Shield

Min: 25 ft., Max: 4000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

2 AWG MV-105, 5kV/8kV, EPR/PVC Power Cable w/ Copper Tape Shield

SKU
MV1052-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 20' to maximum 1000'. Please call for longer put ups.

Applications:
For use in power circuits up to 8 kV when installed in open air, conduit, duct or buried directly in the earth, for wet and dry locations. Used for power applications in chemical plants, refineries, steel mills, industrial plants, utility substations and generating stations.

Jacket:
Black Polyvinylchloride (PVC) Jacket, sunlight resistant

Standards:
Listed as Type MV-105 per UL 1072 and meets the requirements of ICEA S-93-639. Sizes 1/0 and larger marked "for CT use" and pass UL 1685 70,000 Btu/hr flame test

Conductors:
Class B stranded, annealed, bare copper per ASTM B-3 and B-8, (compact stranding per ASTM B-496 is available). Strand shield is an extruded semi-conducting thermoset

Insulation:
Ethylene Propylene Rubber (EPR) per ICEA S-93-639 (NEMA WC74)

Insulation Shield:
Extruded semi-conducting thermoset insulation shield. Metallic shield is a helically applied 5 mil uncoated copper tape

Ampacity:
Based on three single conductor cables in isolated conduit in air per NEC Table 310.73 with a conductor temperature of 90°C and an ambient temperature of 40°C

Temperature:
105°C

Voltage:
5 kV 133% and 8 kV 100%

Specifications*:

Size: 2 AWG
Number of Strands: 7
Insulation Thickness: 0.115 inches
Jacket Thickness: 0.060 inches
Outside Diameter: 0.780 inches
Weight: 0.470 lbs per ft
Amps per Conductor: 130 amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size2 AWG
O.D. (Inches)0.78
Ampacity130
