5kV/15kV Portable Jumper Cable. Cut to length - sold by the Foot.

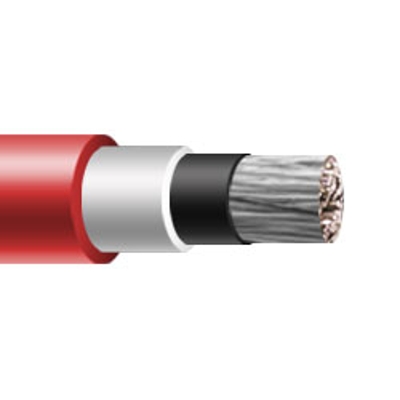

2 AWG Jumper Cable Red 5kV/15kV
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.
Suitable as a flexible power lead for temporary connections and other industrial applications.
Excellent resistance to oil and weather. Excellent flexibility. Water-resistant. Sunlight-resistant. Temperature range: -40ºC to +90ºC
ICEA S-75-381/NEMA WC-58
ASTM B 33
Flexible strand tin coated copper, ASTM B-172 and ICEA S-75-381
Synthetic semi-conducting tape separator between the conductor and insulation
Ethylene-propylene rubber (EPR), UL 1072
Red heavy duty CPE thermoset compound, ICEA S-75-381 sec 3.22
Size: 2 AWG
Conductor Strand: 259x0.159
Insulation Thickness: 0.175 inches
Jacket Thickness: 0.080 inches
Outside Diameter: 0.820 inches
Weight: 0.48 lbs per ft
Amps 40ºC: 195
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||2 AWG|
|# of Conductors||1 Conductor|
