Multiconductor Portable Round Power Cable. Cut to length - sold by the Foot.

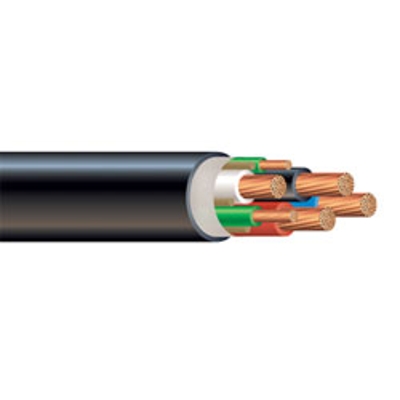

2 AWG 4C Type G Round Power Cable
Product DetailsLearn everything you want to know about this product to make an informed purchase
2000V, 90°C (-40°C), Oil and Sunlight Resistant.
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.
Type G cables are suitable for use in industrial and light- to medium-duty mining applications, heavy-duty service as power supply cable, power cable for mobile and portable electrical equipment at a continuous conductor temperature of 90°C. Type G-GC cables may be used in marina (wet) applications. Type G-GC cables are suitable for use on three-phase AC systems where 3 or 4 conductors are needed and grounding is required. Excellent flexibility, resistance to oils, solvents, ozone, aging, and abrasion.
- Rated 2000 volts, 90°C dry locations, 75°C wet locations
- Temperature -40°C to 90°C
- UL and c(UL) Listed
- MSHA approved
- Meets FT-5 Flame Test and UL 1650
- RoHS Compliant
Type G & G-GC portable power cables are manufactured with rope-lay stranded, bunched members, annealed copper conductors which are insulated with a premium-grade EPDM. The insulated conductors are assembled round with non-wicking fillers and jacket reinforcements as needed. The cable is covered with a black CPE rubber jacket that has indented printing for easy identification.
Size: 2 AWG
Number of Conductors: 4
Conductor Strand: 168
Ground Conductor AWG Size: 4#10
Nominal Insulation Thickness: 0.060 inches / 1.52 mm
Outside Diameter: 1.465 inches / 37.21 mm
Current AMPS: 122
Net Weight: 1.914 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
|Cable Type||Type G|
|Wire Size||2 AWG|
|# of Conductors||4 Conductors w/ 4 Grounds|
|Conductor Material||Bare Copper|
|Stranded or Solid||Stranded|
