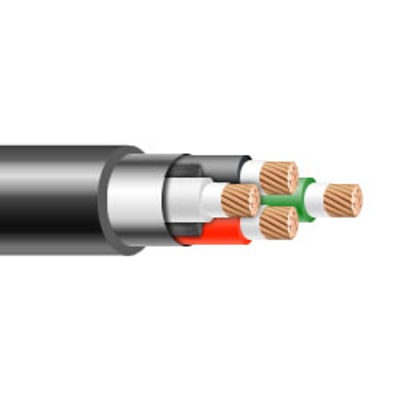

2/4 SOOW Portable Cord 600V Non UL
Product Details
Learn everything you want to know about this product to make an informed purchase2/4 SO Cord - SOOW
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1 ft. to maximum 1000 ft. Please call for longer put ups.
Color:
Black
Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery
Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. Temperature range: -40ºC to +90ºC
Standards:
MSHA Approved
RoHS Compliant
Construction:
Conductors:
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.
2/4 SOOW Specifications*:
Size: 2 AWG
Number of Conductors: 4
Conductor Strand: 133/.0211
Insulation Thickness: 0.055 inches
Outside Diameter: 1.170 inches
Weight: 1.245 lbs per ft
Current Amps: 80
Color Code:
4 Conductors – Black, White, Red, Green
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Cable Type | SOOW - 600V |
| Wire Size | 2 AWG |
| # of Conductors | 4 Conductors |
| O.D. (Inches) | 1.17 |
| Ampacity | 80 |
| Temp. Rating | -40°C ~ 90°C |
| Jacket Material | CPE - Chlorinated Polyethylene |
| Flexibility | High Flexibility |
| Indoor/Outdoor Use | Indoor, Outdoor |
| Shielded | No |
| Features | Weather Resistant, Water Resistant, Oil Resistant |
| Color Code | Black, White, Red, Green |
