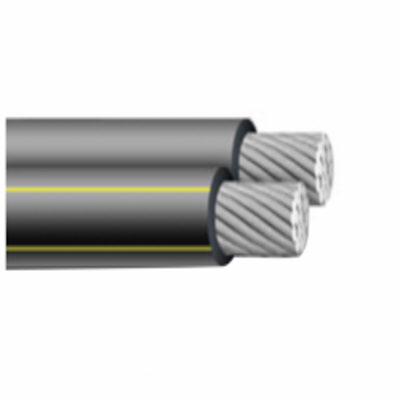

2-2 Everett Aluminum Duplex URD Direct Burial Cable

2-2 Underground Secondary Distribution Cable

Color:
Black.

Description:
Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts. As an option, this cable can be provided pre-pulled into duct.

Conductor:
A concentric strand or compressed 1350-H19 series aluminum conductor. Conductors are cabled together, with surface printing for identification. The neutral conductor has a yellow stripe.

Insulation:
Black cross linked polyethylene (XLP) insulation.

Applicable Standards:
ASTM B-230 ASTM B-231 ASTM B-609 ASTM B-901 ICEA S-105-692 Federal Specification A-A595544A UL 854 RUS ACCEPTED

2-2 Duplex URD Cable Specifications*:

Phase Conductor-Size: 2 AWG
Conductor Strand: 7
Neutral Conductor-Size: 2 AWG
Conductor Strand: 7
Insulation Thickness: 0.060 inches
Outside Diameter: .800 inches
Allowable Ampacity-Direct Burial: Direct Burial = 187 Amps - In Duct = 100 Amps
Weight: 0.189 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
