$2.56 /ft.

In Stock

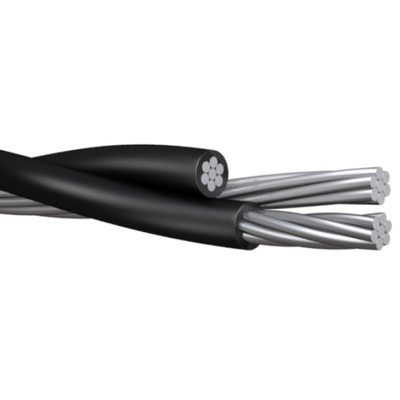

2-2-4 Cockle Aluminum Triplex Overhead Service Drop Cable. Sold by the foot.

Min: 50 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

#2-2-4 Cockle Aluminum Triplex Overhead Service Drop Cable

SKU
OHC224-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Color:
Black

Description:
Aluminum Triplex Overhead cable is designed for use to supply power from utility lines to the consumer weather head. For service at 600 volts or lower (phase to phase) at a conductor temperature of 75°C maximum.

Conductor:
Aluminum Triplex Overhead cable has concentric strand or compressed 1350-H19 series aluminum conductor.

Insulation:
Aluminum Triplex Overhead cable has a black cross linked polyethylene (XLP) insulation.

Messenger:
Aluminum Triplex Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of
AAC or 6201 alloy.

Applicable Standards:
ASTM B-230
ASTM B-231
ASTM B-232
ASTM B-399
ICEA S-76 - 474

Specifications*:

Phase Conductor-Size: 2
Conductor Strand: 7
Insulation Thickness: 0.050 inches
Neutral Conductor-Size: 4 AWG
Conductor Strand: 6/1
Allowable Ampacity: 150 Amps
Weight: 0.228 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeOverhead Service Drop
Wire Size2 AWG
# of Conductors3 Conductors
Conductor MaterialAluminum
Stranded or Solid Stranded
Ampacity 150
Voltage600V
Insulation MaterialXLPE - Cross-linked Polyethylene
Sunlight ResistantYes
