MV-105 EPR/PVC Power Cable w/ Copper Tape Shield, 5kV/8kV. Cut to length - sold by the Foot.

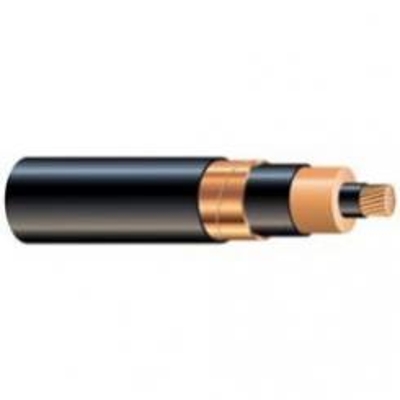

2/0 MV-105, 5kV/8kV, EPR/PVC Power Cable w/ Copper Tape Shield
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.
For use in power circuits up to 8 kV when installed in open air, conduit, duct or buried directly in the earth, for wet and dry locations. Used for power applications in chemical plants, refineries, steel mills, industrial plants, utility substations and generating stations.
Black Polyvinylchloride (PVC) Jacket, sunlight resistant
Listed as Type MV-105 per UL 1072 and meets the requirements of ICEA S-93-639. Sizes 1/0 and larger marked "for CT use" and pass UL 1685 70,000 Btu/hr flame test
Class B stranded, annealed, bare copper per ASTM B-3 and B-8, (compact stranding per ASTM B-496 is available). Strand shield is an extruded semi-conducting thermoset
Ethylene Propylene Rubber (EPR) per ICEA S-93-639 (NEMA WC74)
Extruded semi-conducting thermoset insulation shield. Metallic shield is a helically applied 5 mil uncoated copper tape
Based on three single conductor cables in isolated conduit in air per NEC Table 310.73 with a conductor temperature of 90°C and an ambient temperature of 40°C
5 kV 133% and 8 kV 100%
Number of Strands: 19
Insulation Thickness: 0.115 inches
Jacket Thickness: 0.080 inches
Outside Diameter: 0.960 inches
Weight: 0.780 lbs per ft
Amps per Conductor: 205 amps
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||2/0 AWG|
