2/0 Gauge Tinned Marine Battery Cable, UL 1426
Product DetailsLearn everything you want to know about this product to make an informed purchase
***SHIPS WITHIN 2-3 BUSINESS DAYS***

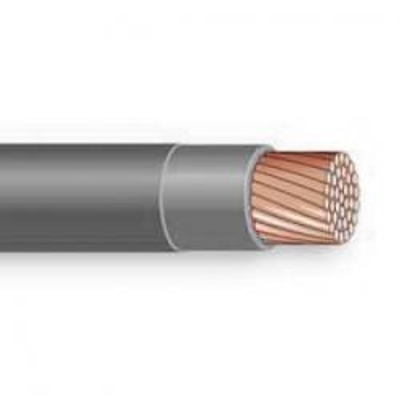

2/0 Tinned Marine Battery Cable, UL 1426, 100ft Length
UL Listed, single-conductor tinned wire ideal for use in the high corrosive environment of marine applications. Special electro-tinned, copper strands also increase protection against corrosion for recreational vehicles, automotive, trucks, and trailers. Tinned copper stranding is extremely flexible for easy routing through marine applications and easier to solder than bare copper. Flame retardant, PVC insulation is highly resistant to water, oil, grease, gasoline, and other damaging solvents. High voltage tolerance of up to 600 volts adds to versatility to its use in multiple marine and other suitable applications.
Wire meets UL 1426 for Boat Cable – BC-5W2
Meets DOT, U.S. Coast Guard CFR 33, U.S. Coast Guard, CFR 46, ABYC (American Boat and Yacht Council), and NMMA (National Marine Manufacturers Association) specifications for electrical systems
Number of Strands: 19 x 70/30
Temp: Rated at 105°C (221°F) dry and 75°C (167°F) wet
Jacket Material: Polyvinylchloride (PVC)
Outside Diameter: 0.655 inches
Weight: 0.55 lbs per ft.
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||2/0 AWG|
|# of Conductors||1 Conductor|
|O.D. (Inches)||0.655 in.|
