$3.59 /ft.

In Stock

2/0 Battery Cable. Cut to length - sold by the Foot.

Min: 10 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

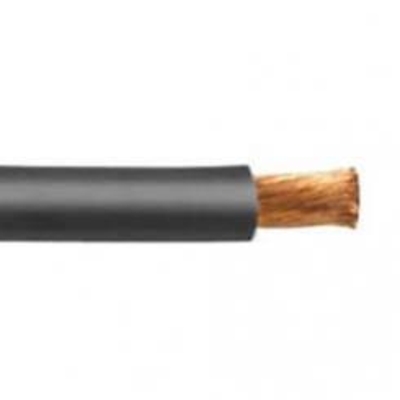

2/0 Battery Cable, Type SGT

SKU
SBC2s0-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Type: SGT SAE J1127 Battery Cable

Colors Available:
Black & Red

Applications:
Used for connecting battery to switch, starter, and ground. Tough, high temperature resistant PVC insulation is durable enough to handle heavy-duty automotive demands.

Features:
Highly Flexible Thermoplastic Polyvinyl Chloride

Insulation:
Polyvinyl Chloride (PVC)

Temperature:
Rated –40°C (–58°F) to 105°C (221°F)

Standards:
SAE J1127

Conductor:
Stranded Bare Copper

Also Known As:
Battery Cable, 2/0 Automotive Battery Wire, Type SGT SAE J1127-Battery Cable

Specifications*:

Size: 2/0
Conductor Strand: 1,254
Outside Diameter: 0.550 inches
Voltage: 60V DC (25 V AC) or less
Weight: 0.452 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size2/0 AWG
# of Conductors1 Conductor
O.D. (Inches)0.55
