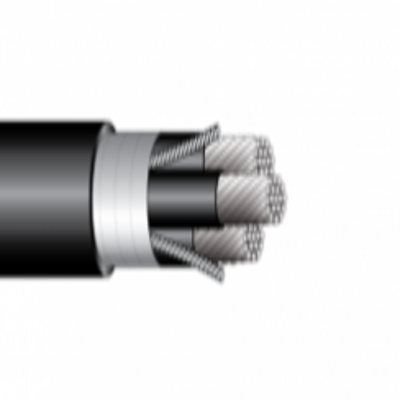

2/0-3C w/ 3 #4 Grounds Shielded VFD Cable

2/0-3C w/ 3 #4 Grounds Shielded VFD Cable
SKU VFD2s03C3G

$

42.710000

42.710000

/ft
How will you purchase this wire?
42.710000 42.710000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

2/0-3C w/ 3 #4 Grounds Shielded VFD Cable

Color Length (ft.) Price
Black

Length (ft.)

$42.71
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$21,355.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    2/0 AWG

  • O.D. (Inches)

    1.444

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

XLP Insulation, PVC Jacket, 600/1000V UL Type TC-ER, 90°C

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Applications:
A flexible, shielded power cable specifically engineered for use in variable frequency AC motor drive (VFD) applications.

Conductor:
Stranded bare copper circuit conductors

Insulation:
Crossed-linked polyolefin (XLPO), flexible and low dielectric

Jacket:
Black polyvinyl chloride (PVC) that is sunlight, moisture, oil and abrasion resistant and direct burial rated, for use from -40C to 90C.

Shield:
005” helical bare copper tape shield, with a 50% overlap.

Grounding Conductor:
3 Stranded bare copper conductors

Compliances:
UL 1277, Type TC-ER, Type XHHW-2
UL approved as 1000V flexible motor supply cable
UL listed as VFD or WTTC per UL 2277 for Flexible Motor Supply and Wind Turbine Tray Cables
CSA FT-4 Vertical tray flame test
CSA AWM I/II A/B singles
C(UL) CIC-TC per CSA standard C22.2 No. 239-09 & 230-09
CSA Type AWM per CSA standard C22.2 No. 210-11
Meets UL 1202/1583 70,000 BTU flame test
Meets ICEA T-29-520 210,000 BTU flame test
Suitable for use in Class I Division II hazardous locations
90C DRY/WET
RoHS II & REACH compliant

Specifications*:

Size: 2/0
Number of Conductors: 3
Conductor Strand: 133
Insulation Thickness: 0.055 inches
Ground Wire: 4 AWG x 3
Jacket Thickness: 0.080 inches
Outside Diameter: 1.444 inches
Weight: 1.9510 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
