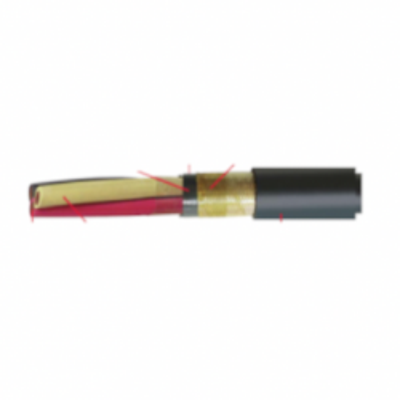

2/0 3C Type P Armored & Sheathed Power Cable, 600/1000V. Cut to length - sold by the Foot.
Product Details
Learn everything you want to know about this product to make an informed purchase2/0 3C Type P Armored & Sheathed Power Cable, 600/1000V
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put ups.
Applications:
Designed and constructed for the demanding environments of offshore drilling and petroleum facilities located throughout the world.
Conductor:
Soft annealed flexible stranded tinned copper per IEEE 1580 Table 11
Insulation:
Flame Retardant Cross-linked Polyolefin, meeting the requirements for Type P of IEEE 1580 and Type X110 of UL 1309/CSA C22.2 No. 245. Color Code: Black-White-Red (Black-White-Green on request). Sizes 1/0 and Larger: Black with Phase ID Imprint.
Jacket:
Black, arctic grade, flame retardant, oil, abrasion, chemical and sunlight resistant thermosetting compound meeting UL 1309/CSA C22.2 No. 245 and IEEE 1580.
Armor:
Basket weave wire armor per IEEE 1580 and UL 1309/CSA C22.2 No. 245. Bronze standard. Tinned copper available by request.
Armor:
A black, arctic grade, flame retardant, oil abrasion, chemical and sunlight resistant thermosetting compound meeting UL 1309/CSA C22.2 No. 245 and IEEE 1580.
Compliances:
• American Bureau of Shipping (ABS)
• Transport Canada
• Det Norske Veritas (DNV)
• Lloyd's Register of Shipping (LRS)
• NVE 95/1696, FAL
• UL listed as Marine Shipboard Cable
• United States Coast Guard
• CSA listed as Marine Shipboard Cable
Features:
High strand count conductors make this product extremely flexible, easier to install and more resistant to vibration than Type MC, IEC spec or commercial cables.
• Lower dielectric constant and higher insulation resistance reduces electrical losses.
• Excellent resistance to moisture produces stable electrical properties throughout the life of the cable.
• In fire conditions, non chlorinated flame retardant system produces less toxic and less corrosive gasses.
• Dual certified IEEE 1580 Type P and UL 1309/CSA C22.2 No. 245 Type X110.
• Highest ampacity ratings: ABS 100°C, DNV 95°C, LRS 95°C, Transport Canada 95°C
• Severe cold durability: exceeds CSA cold bend/cold impact (-40/-35° C)
• Flame retardant: IEC 60332-3 Category A and IEEE 1202
• Suitable for use in Class I, Division 1 and Zone 1 environments.
• Braided armor of bronze. Tinned Copper available by request.
Specifications*:
Size: 2/0
Number of Conductors: 3
Nominal Diameter: 1.645 inches
Inductive Reactance (Ohms/1000 ft.): 0.027
Voltage Drop at 110°C (Volts/Amp/1000ft.): 0.200
DC Resistance at 25°C ((Ohms/1000 ft.): 0.093
AC Resistance at 110°C (Ohms/1000 ft.): 0.125
Current AMPS: 110°C = 201, 100°C = 188, 95°C = 175
Net Weight: 2.424 lbs per ft
*Cable diameters shown as nominal are subject to a ±5% manufacturing tolerance.
Stocked | Yes |
---|---|
Wire Size | 2/0 AWG |
# of Conductors | 3 Conductors |
Conductor Material | Tinned Copper |
O.D. (Inches) | 1.645 |
Ampacity | 201 |
Jacket Color | Black |
