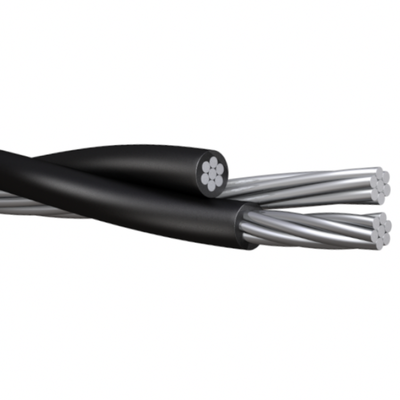

2/0-2/0-2/0 Runcina Aluminum Triplex Overhead Service Drop Cable. Sold by the foot.
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Color:
Black.
Description:
Aluminum Triplex Overhead cable is designed for use to supply power from utility lines to the consumer weather head. For service at 600 volts or lower (phase to phase) at a conductor temperature of 75°C maximum
Conductor:
Aluminum Triplex Overhead cable has concentric strand or compressed 1350-H19 series aluminum conductor.
Insulation:
Aluminum Triplex Overhead cable has a black cross linked polyethylene (XLP) insulation.
Aluminum Triplex Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of
Applicable Standards:
ASTM B-230
ASTM B-231
ASTM B-232
ASTM B-399
ICEA S-76 - 474
Specifications*:
Phase Conductor-Size: 2/0
Conductor Strand: 7
Insulation Thickness: 0.060 inches
Neutral Conductor-Size: 2/0 AWG
Conductor Strand: 6/1
Allowable Ampacity: 230 Amps
Weight: 0.519 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Cable Type | Overhead Service Drop |
| Wire Size | 2/0 AWG |
| # of Conductors | 3 Conductors |
| Conductor Material | Aluminum |
| Stranded or Solid | Stranded |
| Ampacity | 230 |
| Voltage | 600V |
| Insulation Material | XLPE - Cross-linked Polyethylene |
| Sunlight Resistant | Yes |
