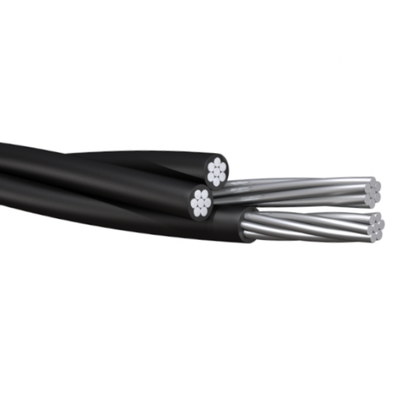

2/0,2/0,2/0,2/0 Grullo Aluminum Quadruplex Overhead Cable. Sold by the foot.
2/0-2/0-2/0-2/0 Grullo Aluminum Quadruplex Overhead Service Drop Cable
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Aluminum Quadruplex Overhead cable is designed for use to supply 3 phase power, usually from a pole mounted transformer, to the consumer weather head, where the connection to the service entrance cable is made. For service at 600 volts or lower (phase to phase) at a conductor temperature of 75°C maximum.
Aluminum Quadruplex Overhead cable has a concentric strand or compressed 1350-H19 series aluminum conductor.
Aluminum Quadruplex Overhead cable has a black cross linked polyethylene (XLP) insulation.
Aluminum Quadruplex Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.
ICEA S -76 - 474
Phase Conductor-Size: 2/0
Conductor Strand: 19
Insulation Thickness: 0.060 inches
Neutral Conductor-Size: 2/0
Conductor Strand: 6/1
Allowable Ampacity: 205 Amps
Weight: 0.707 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
|Cable Type||Overhead Service Drop|
|Wire Size||2/0 AWG|
|# of Conductors||4 Conductors|
|Stranded or Solid||Stranded|
|Insulation Material||XLPE - Cross-linked Polyethylene|
