Learn everything you want to know about this product to make an informed purchase195.7 MCM Amherst AAAC Bare Aluminum
Application:
This wire is suitable for use in spans on wood poles, transmission towers, and other structures where AAC conductors do not provide the required strength and ACSR conductors are not required or suitable. Applications range from extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.
Applicable Standards:
- ASTM B-398: Aluminum Alloy 6201-T81 aluminum alloy conductors
- ASTM B-399: Concentric Lay stranded 6201-T81 aluminum alloy conductors
Construction:

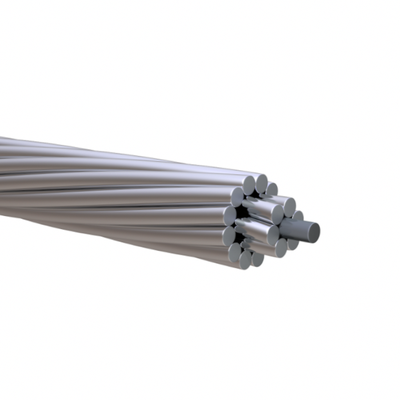

Bare aluminum alloy conductors made of 6201 Aluminum alloy are wrapped helically around a central wire.
Specifications*:
Size: 195.7
Number of Strands: 7
AWG/KCMIL: 3/0
Outside Diameter: 0.502 inches
Weight: 0.182 lbs per ft
Rated Strength (lb/ft): 6790
Resistance OHMS/1000 ft. AC @ 75C: 0.123
Ampacity: 342 Amps
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 195.7 MCM |
# of Conductors | 1 Conductor |
O.D. (Inches) | 0.502 |
Ampacity | 342 |
