18 Gauge Primary Wire, 500ft or 1000ft Spool
Product Details
Learn everything you want to know about this product to make an informed purchase***SHIPS WITHIN 2-3 BUSINESS DAYS***

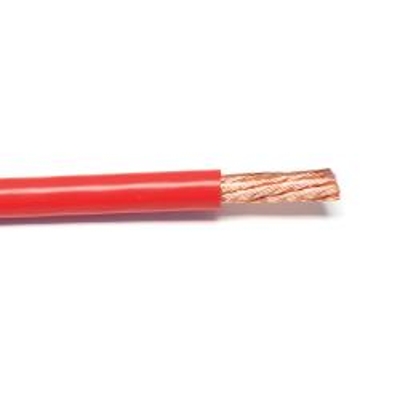

18 Gauge Primary Wire, 80°C, 500ft or 1000ft Spool
Applications:
General-purpose thermoplastic insulated wire ideal for automotive, truck, trailers, boats, and other point-to-point, low voltage wiring applications. Its jacket surface is smooth enough to easily go through loom or conduit yet tough enough to resist grease, oil, and acid. Meeting the standard for O.E. or replacement applications, this single conductor copper wire is the ideal solution for dependable general purpose needs.
Standards: SAE J1128, SAE J378
Colors Available: Black, Red, White, Green, Yellow, Brown, Blue or Orange
Specifications*:
Size: 18 Gauge
Number of Strands: 16/30
Voltage: Rated at 60V or less
Temp: Rated at 80°C (176°F)
Jacket Material: Polyvinylchloride (PVC)
Outside Diameter: 0.095 inches
Weight: 0.009 lbs per ft.
*Data provided on this page is subject to change based on different manufacturers variances.
| Wire Size | 18 AWG |
|---|---|
| # of Conductors | 1 Conductor |
| Conductor Material | Bare Copper |
| Stranded or Solid | Stranded |
| Number of Strands | 16 |
| O.D. (Inches) | 0.095 |
| Temp. Rating | -40°C ~ 80°C |
| Insulation Material | PVC - Polyvinyl Chloride |
| Standards | SAE J1128 |
