18 Gauge 2 Conductor Bonded Parallel Wire

SKU BP18s2

$

0.180000

0.180000

/ft
How will you purchase this wire?
0.180000 0.180000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

100 500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18 Gauge 2 Conductor Bonded Parallel Wire

Grouped product items
Color Length (ft.)
N/A Length 100 ft.
$18.00
N/A Length 500 ft.
$90.00
N/A Length 1000 ft.
$180.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • # of Conductors

    2 Conductors

  • O.D. (Inches)

    0.095 x 0.190 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

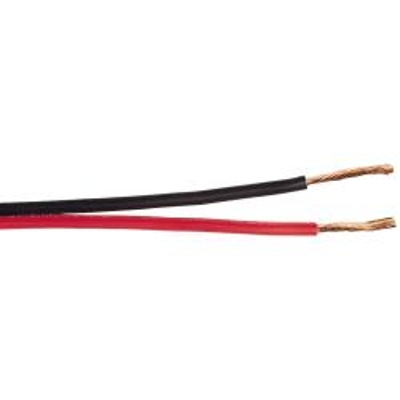

18 Gauge 2 Conductor Bonded Parallel Wire

Applications:
Multiple primary wires parallel bonded with color-coding for identification purposes. Especially ideal for use in RVs, marine, and utility trailer applications. Built to stay together under the toughest operating conditions yet easy to separate at the end of a run for final terminal connection. All-copper stranded core is highly conductive maximizing current transfer while remaining flexible for easy installation. Customized printing is available to best meet individual needs.

Standards: SAE J1128, SAE J378

Color Code:
2 Conductors: Black/Red

Specifications*:

Size: 18 Gauge
Conductors: 2
Number of Strands: 16/30
Voltage: 60 Volts or Less
Temp: : Rated –30°C (–22°F) to 80°C (176°F)
Outside Diameter: 0.095 x 0.190 inches
Weight: 2 lbs.

*Data provided on this page is subject to change based on different manufacturers variances.
