18 AWG TGGT Wire, High Temperature Wire, 250C

SKU TGGT18

$

0.590000

0.590000

/ft
How will you purchase this wire?
0.590000 0.590000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18 AWG TGGT Wire, High Temperature Wire, 250C

Color Length (ft.) Price
N/A

Length (ft.)

$0.59
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$295.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • # of Conductors

    1 Conductor

  • Conductor Material

    Nickel Plated Copper

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    0.11

  • Ampacity

    20

  • Voltage

    600V

  • Insulation Material

    PTFE

  • Jacket Material

    Fiber Glass Braid

  • UL Style

    Style 5256

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put-ups.

Applications:
Type TGGT is commonly used as internal wiring for commercial, industrial, and household ovens, cooking, and drying equipment. TGGT wire is suited for severe hot spot locations in industrial processing. TGGT may be used in both wet and dry applications.

Features:
- Superior resistance to high temperature, abrasion, chemicals, and moisture
- Critical high temperature performance
- Designed for flexing applications

Application Standards:
- Meets the UL requirements for AWM Style 5256/5196, also meets the requirements for CSA Type C3

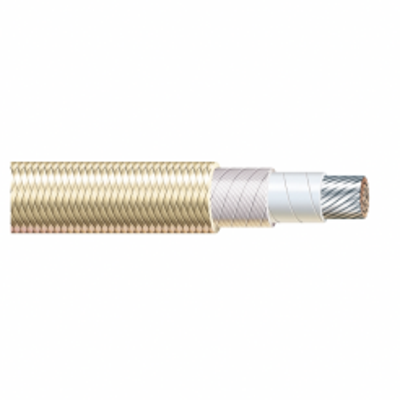

Conductor:
TGGT features single, stranded, nickel-coated copper conductor.

Insulation:
PTFE Tape/Fiberglass Serving/Fiberglass Braid treated with High-Temp Saturant

Jacket:
Braided-glass yarn impregnated with an abrasion-resistant finish

Specifications*:


Size: 18 AWG
Insulation Thickness: 0.010 inches
Braid Thickness: 0.008 inches
Outside Diameter: 0.110 inches
Weight: 0.013 lbs per ft
Ampacity: 20 Amps @
Voltage: 600 Volts
Max Temp: 250°C

*Data provided on this page is subject to change based on different manufacturers variances.
