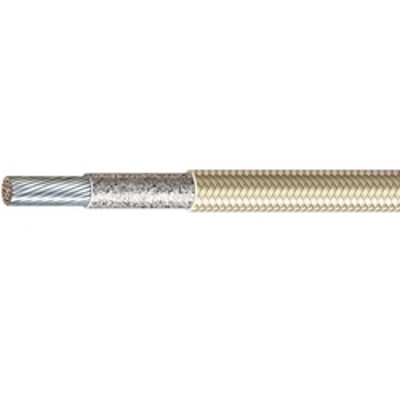

18 AWG MG Wire, High Temperature Wire, 450C

SKU TMG18

$

0.830000

0.830000

/ft
How will you purchase this wire?
0.830000 0.830000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18 AWG MG Wire, High Temperature Wire, 450C

Color Length (ft.) Price
Tan

Length (ft.)

$0.83
add Add a length
Grouped product items
Color Length (ft.)
Tan Length 500 ft.
$415.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    MG

  • Wire Size

    18 AWG

  • # of Conductors

    1 Conductor

  • Conductor Material

    Nickel Plated Copper

  • Stranded or Solid

    Stranded

  • Number of Strands

    16

  • O.D. (Inches)

    0.114

  • Ampacity

    31

  • Voltage

    600V

  • Temp. Rating

    450°C

  • Insulation Material

    Mica Glass

  • Jacket Material

    Fiber Glass Braid

  • UL Style

    Style 5107/5335

  • Standards

    UL Listed

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put-ups.

Application:
Wiring of very high-temperature commercial or industrial equipment. Useful for high-temperature environments where lower-rated cables will not work adequately.

 Applicable Standards:

- UL Listed for 450°C with a 538°C maximum (non UL), meets the UL requirements for AWM Style 5107/5335

Conductor:
Nickel Plated Copper

Insulation:
Mica glass composite insulation

Jacket:
Fiberglass braid jacket

Specifications*:

Size: 18 AWG
Number of Strands: 16
Insulation Thickness: 0.025 inches
Braid Thickness: 0.007 inches
Outside Diameter: 0.114 inches
Amps: 31 Amps
Weight: 0.011 lbs per ft
Voltage: 600 Volts
Max Temp: 450°C

*Data provided on this page is subject to change based on different manufacturers variances.
