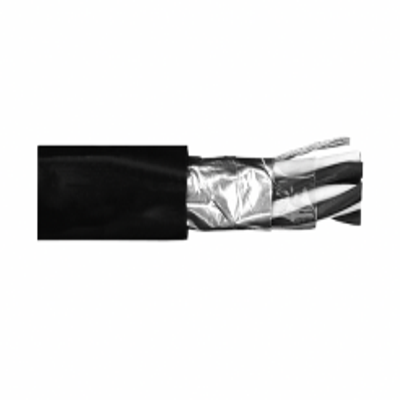

18 AWG 6 Pair Type TC-ER, Instrumentation Tray Cable, Individual & Overall Shield, 600V

SKU VNT186SPOS

$

2.560000

2.560000

/ft
How will you purchase this wire?
2.560000 2.560000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18 AWG 6 Pair Type TC-ER, Instrumentation Tray Cable, Individual & Overall Shield, 600V

Color Length (ft.) Price
Black

Length (ft.)

$2.56
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$1,280.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • # of Conductors

    12 Conductors

  • # of Pairs

    6 Pair

  • O.D. (Inches)

    0.561

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

18/6PR Type TC-ER, Tray Cable, Individual & Overall Shield, 600V
PVC/Nylon/PVC, Sunlight & Oil Resistant, Direct Burial Rated

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
For use indoors or outdoors and for installation in trays, troughs, channels, ducts and direct burial. Designed for telemetering, signals, relays and communication.  Shielding serves as protection from electrostatic interference & cross talk. Permitted use in Class 1, Division 2 industrial hazardous locations per NEC.

Features:
Sunlight Resistant PVC Jacket
Strong oil & chemical resistance
Rated for Direct Burial
Rated at 90°C dry, 75°C wet

Standards:
Meets the requirements of UL 1277 for type TC (tray cable) and passes the UL 1685 vertical tray flame test

Conductor:
18 AWG bare copper, 7 strand, Class B stranded per ASTM B-8

Insulation:
Polyvinyl Chloride (PVC) and nylon

Jacket:
Sunlight-resistant Polyvinyl Chloride (PVC)

Shielding:
Aluminum mylar tape providing 100% coverage with a flexible stranded tinned copper drain wire.

Color Code:
ICEA Method 1: Black & White pairs with printed numbers

Specifications*:

Size: 18 AWG
Number of Pairs: 6
Overall Jacket Thickness: 0.060 inches
Outside Diameter: 0.561 inches
Net Weight: 0.163 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
