Belden 8489 equals General C2404A, UL 2464, UL 2576, NEC Type CM, CSA CMG

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

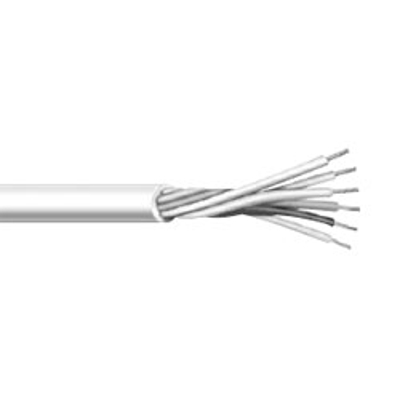

18 AWG, 4 Conductor, Communication Cable, Unshielded, 500ft or 1000ft Spool

SKU
COMC2404A

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 8489 equals General C2404A, UL 2464, UL 2576, NEC Type CM (UL) c(UL), CSA CMG

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Public address systems, Intercoms, Internal telephones, Remote control circuits, Suitable for EIA RS-232 applications, Suggested voltage rating: 300 volts

Compliances:
- NEC Article 800 Type CM (UL: 75°C)
- UL Style 2464 (UL: 80°C, 300V)
- UL Style 2576 (UL: 80°C, 150V)
- CSA CMG (CSA 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU
- Vertical Tray Flame Test
- Passes CSA CMG Flame Test

Conductor:
Fully annealed, stranded tinned copper per ASTM B-33

Insulation:
Premium-grade, coIor-coded S-R PVC per UL 1061

Jacket:
PVC, gray
-20°C to +80°C

Specifications*:

Size: 18 AWG
Number of Conductors: 4
Conductor Stranding: 16/30
Nominal Insulation Thickness: 0.016 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.258 inches
Nomonal C-C Cap. pF/ft: 30.5

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size18 AWG
# of Conductors4 Conductors
O.D. (Inches)0.258 in.
Alt to Belden #8489
ShieldedNo
Shield TypeUnshielded
