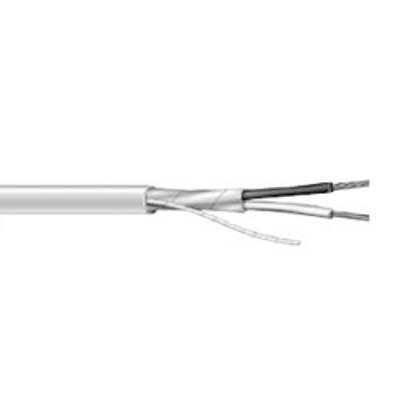

Belden 9553 equals General C0561A, NEC Type PLTC



25k Minimum Order:  Ships from Factory

Lead time 5 weeks





Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

18 AWG, 3 Pairs, Foil Shield, Power Limited Tray Cable, 1000ft Spools

SKU
COMC0561A

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 9553 equals General C0561A, NEC Type PLTC

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Cable tray installations, Power limited circuits, Intercom systems, Business machines, Cash registers, Industrial control systems, Petrochemical refineries, Suggested voltage rating: 300 volts, Burglar alarms

Compliances:
- NEC Article 725 Power-Limited Tray Cable (UL: 105°C, 300V)
- RoHS Compliant Directive 2002/95/EC
- UL Standard 13 Type PLTC

Conductor:
Fully annealed, stranded tinned copper per ASTM B-33

Insulation:
Premium-grade, color-coded PVC

Shield:
- 100% aluminum/polyester, 25% overlap, foil facing out
- Stranded tinned copper drain wire

Jacket:
PVC, gray
105°C

Specifications*:

Size: 18 AWG
Number of Pairs: 3
Nominal Insulation Thickness: 0.016 inches
Nominal Jacket Thickness: 0.042 inches
Outside Diameter: 0.403 inches

Belden 3105a Spec SheetView Spec Sheet for Complete Details

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size18 AWG
# of Conductors6 Conductors
# of Pairs3 Pair
O.D. (Inches)0.403
Sunlight ResistantYes
Alt to Belden #9553
ShieldedYes
Shield TypeOverall Foil Shield
