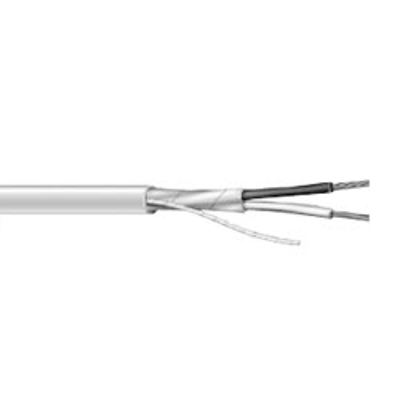

18 AWG, 3 Conductor, Power Limited Tray Cable, Unshielded, 500ft or 1000ft Spool

Belden 9493 equals General C0436A, NEC Type PLTC

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Cable tray installations, Power limited circuits, Intercom systems, Business machines, Cash registers, Industrial control systems, Petrochemical refineries, Suggested voltage rating: 300 volts, Burglar alarms

Compliances:
- NEC Article 725 Power-Limited Tray Cable (UL: 105°C, 300V)
- RoHS Compliant Directive 2002/95/EC
- UL Standard 13 Type PLTC

Conductor:
Fully annealed, stranded tinned copper per ASTM B-33

Insulation:
Premium-grade, color-coded PVC

Jacket:
PVC, gray
105°C

Specifications*:

Size: 18 AWG
Number of Conductors: 3
Conductor Stranding: 19/.0117
Nominal Insulation Thickness: 0.013 inches
Nominal Jacket Thickness: 0.037 inches
Outside Diameter: 0.255 inches
Nominal Cap. pF/ft: A-50.0, B-90.0

*Data provided on this page is subject to change based on different manufacturers variances.
