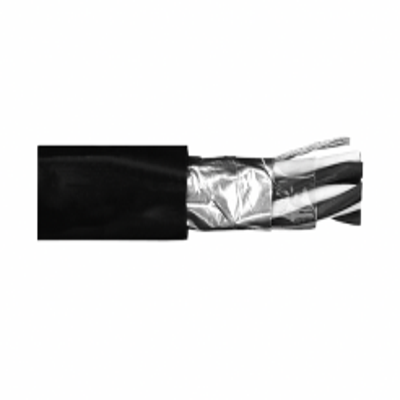

18 AWG 2 Pair Instrumentation Cable w/ Overall Shield, Type TC-ER, 600V

18/2PR Type TC-ER, Tray Cable, Overall Shield, 600V
PVC/Nylon/PVC, Sunlight & Oil Resistant, Direct Burial Rated

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
For use indoors or outdoors and for installation in trays, troughs, channels, ducts and direct burial. Designed for telemetering, signals, relays and communication.  Shielding serves as protection from electrostatic interference & cross talk. Permitted use in Class 1, Division 2 industrial hazardous locations per NEC.

Features:
Sunlight Resistant PVC Jacket
Strong oil & chemical resistance
Rated for Direct Burial
Rated at 90°C dry, 75°C wet

Standards:
Meets the requirements of UL 1277 for type TC (tray cable) and passes the UL 1685 vertical tray flame test

Conductor:
18 AWG bare copper, 7 strand, Class B stranded per ASTM B-8

Insulation:
Polyvinyl Chloride (PVC) and nylon

Jacket:
Sunlight-resistant Polyvinyl Chloride (PVC)

Shielding:
Overall shield is aluminum/polyester along w/ stranded tinned copper drain wire

Color Code:
ICEA Method 1: Black & White pairs with printed numbers

Specifications*:

Size: 18 AWG
Number of Pairs: 2
Overall Jacket Thickness: 0.045 inches
Outside Diameter: 0.440 inches
Net Weight: 0.072 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
