$315.00

In Stock

Belden 9156 equals General C6118A, UL 2464, NEC Type CM, CSA CMG

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

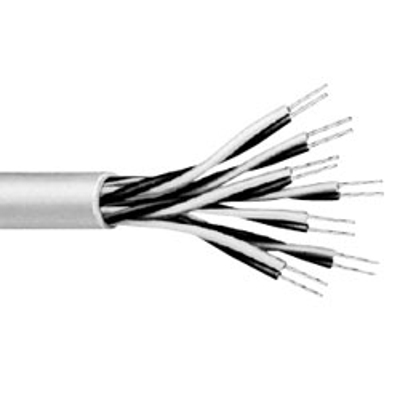

18 AWG, 2 Pair, Communication Cable, Unshielded, 500ft or 1000ft Spool

SKU
COMC6118A

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 9156 equals General C6118A, UL 2464, NEC Type CM (UL) c(UL), CSA CMG

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Computers, Industrial equipment, Data transmission, Control circuits, Suitable for EIA RS-232 applications, Suggested voltage rating: 300 volts

Compliances:
- NEC Article 800 Type CM (UL: 75°C)
- UL Style 2464 (UL: 80°C, 300V)
- CSA CMG (CSA: 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMG Flame Test

Conductor:
Fully annealed, stranded tinned copper per ASTM B-33, twisted pairs

Insulation:
Premium-grade, color-coded S-R PVC

Jacket:
PVC, gray
-20°C to +80°C

Conductor Color Code:
1 Pair - Black/Red
2 Pair - Black/White

Specifications*:

Size: 18 AWG
Number of Pairs: 2
Conductor Stranding: 16/30
Nominal Insulation Thickness: 0.013 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.320 inches
Nomonal C-C Cap. pF/ft: 26.3

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size18 AWG
# of Conductors4 Conductors
O.D. (Inches)0.32 in.
Alt to Belden #9156
ShieldedNo
Shield TypeUnshielded
