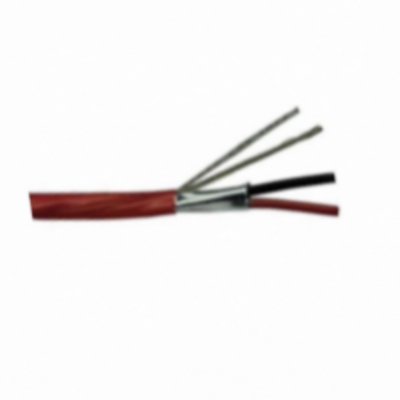

Belden 83652 Equivalent, 2 - 18 AWG stranded (19x30) tinned copper conductors, plenum, FEP insulation, overall shield (100% coverage) plus tinned copper braid shield (85% coverage), FEP jacket

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

18 AWG, 2 Conductor, FEP/FEP, Foil+TC Braid Shield, 500ft or 1000ft Spool

SKU
BELEQ83652

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 83652 Equivalent, NEC Type CMP (UL), 300V

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivalents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivalent to Belden in every way except for the price.

Color:
Red

Compliances:
- UL Flamibility - NFPA 262
- NEC Article 800 Type CMP
- CSA Flamibility - FT6

Conductor:
Tinned Copper

Insulation:
FEP - Fluorinated Ethylene Propylene

Shield:
Layer 1 - 100% Aluminum Foil-Polyester Tape
Layer 2 - 80% Tinned Copper Braid

Jacket:
FEP - Fluorinated Ethylene Propylene - Red

Specifications*:

Size: 18 AWG
Number of Conductors: 2
Conductor Stranding: 19/30
Nominal Insulation Thickness: 0.007 inches
Nominal Jacket Thickness: 0.014 inches
Outside Diameter: 0.171 inches


*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size18 AWG
# of Conductors2 Conductors
O.D. (Inches)0.171
Alt to Belden #83652
ShieldedYes
Shield TypeFoil + Braid(s)
