Belden 82760 Equal - NEC Type CMP (UL) c(UL)

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

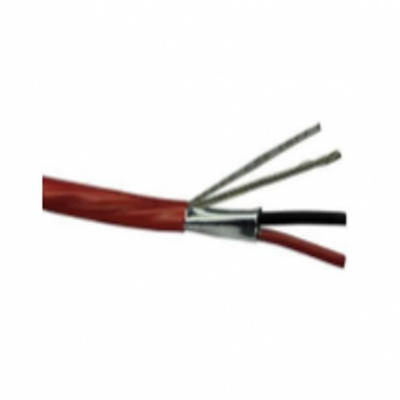

18 AWG, 1 Pair, Plenum FEP Jacket Shielded Cable

SKU
BELEQ82760

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 82760 Equal

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Product Description:
Solid FEP insulated stranded tinned copper conductors with an overall jacket. Shielded version has an aluminum tape and drain wire.

Color:
Natural

Applications:
Security Systems
Intercom Systems
Sound/Audio System
Power-Limited Controls
Suggested voltage rating: 300 volts

Compliances:
RoHS Compliant Cables are manufactured to meet current NEC guidelines and are verifed by outside standards organizations including c(UL)us and c(ETL)us.

Conductor:
18 AWG Stranded Tinned Copper Twisted Pair

Insulation:
Solid FEP

Specifications:

Size: 18 AWG
Number of Pairs: 1
Conductor Stranding: 19
Nominal Jacket Thickness: 0.014 inches
Outside Diameter: 0.160 inches






More Information
StockedYes
Wire Size18 AWG
# of Conductors2 Conductors
# of Pairs1 Pair
O.D. (Inches)0.16
Alt to Belden #82760
ShieldedYes
Shield TypeOverall Foil Shield
