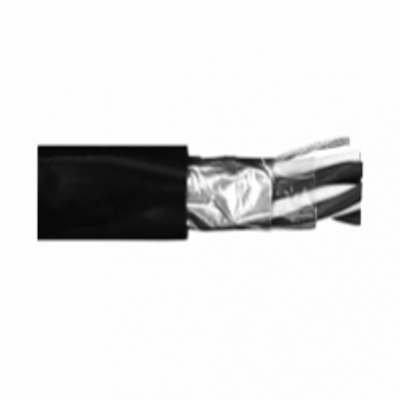

18 AWG 1 Pair Instrumentation Cable, PLTC, Overall Shield, 300V

SKU
PLTC181POS-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

18-1PR PLTC Overall Shield Cable, Sunlight-Resistant, 300V, 105°C

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Minimum 50' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
For use as instrumentation cable inside or outside in control applications. Suitable for installation in trays, troughs, conduit, wireways and for aerial use when supported by a messenger.

Standards:
- Meets Article 725 of the NEC for Type PLTC and UL Subject 13, finished cable meets IEEE 1202 flame test

Conductor:
Bare copper, Class B, concentric stranded

Insulation:
105°C Polyvinyl Chloride (PVC)

Jacket:
Flame-retardant, sunlight-resistant, black PVC, a rip cord is included for jacket removal

Pairs:
Pairs are twisted with a suitable lay to reduce magnetic interference and color coded black and white, each pair is printed numerically to ensure easy identification

Assembly:
The individual pairs are cabled together to form a substantially circular cross-section of the completed assembly, an aluminum/polyester foil shield with stranded tinned copper drain wire is applied overall

Specifications*:

Size: 18 AWG
Number of Pairs: 1
Outside Diameter: 0.260 inches
Temp Rating: 105°C
Voltage: 300V
Weight: 0.045 lbs per ff

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size18 AWG
# of Conductors2 Conductors
# of Pairs1 Pair
Conductor MaterialBare Copper
Stranded or SolidStranded
O.D. (Inches)0.26
Voltage300V
Insulation MaterialPVC - Polyvinyl Chloride
Jacket MaterialPVC - Polyvinyl Chloride
Jacket ColorBlack
Direct BurialYes
Sunlight ResistantYes
Location UseWet, Dry
Indoor/Outdoor UseIndoor, Outdoor
ShieldedYes
Shield TypeOverall Foil Shield
StandardsUL Listed
