Free shipping on orders over $1000 View Details
$192.08 /sp.

In Stock

Plenum Thermostat Wire, 250ft Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
250ft Spool
Add a length

 Free Shipping on all orders over $1000

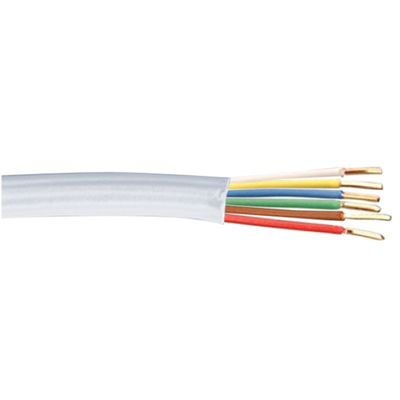

18/6C Plenum Thermostat Wire, 250ft Spool

SKU
PTHM18s6C

Product Details

Learn everything you want to know about this product to make an informed purchase

Plenum Thermostat Wire, 60°C, 150 Volt, UL 13, Type CL2P

Applications:
Plenum Thermostat Cable is primarily used in plenums without conduit for applications such as power limited circuits such as thermostats, air conditioning, heat pumps, bell and alarm systems, signals systems, door bells and remote control units where the voltage does not exceed 30 volts. Temperature rating is 20°C to +60°C.

Standards:
UL 13, CL2P UL 1581 NEC Article 725

Conductors:
Plenum Thermostat Cable has a solid soft drawn copper, per ASTM. B-3.

Insulation:
Plenum Thermostat Cable has a heat and moisture resistant colored low smoke polyvinyl chloride PVC insulation.

Jacket:
Plenum Thermostat Cable has an outer jacket of low smoke polyvinyl chloride PVC, which is heat and moisture resistant.

Specifications*:

Size: 18 AWG
Number of Conductors: 6
Plenum: Yes
Conductor Strand: Solid Soft Drawn Copper
Insulation Thickness: 0.007 inches
Outside Diameter: 0.193 inches
Weight per foot: 0.041 lbs

*Data provided on this page is subject to change based on different manufacturers variances.



More Information
Wire Size18 AWG
# of Conductors6 Conductors
Conductor MaterialBare Copper
O.D. (Inches)0.193
Jacket ColorWhite
