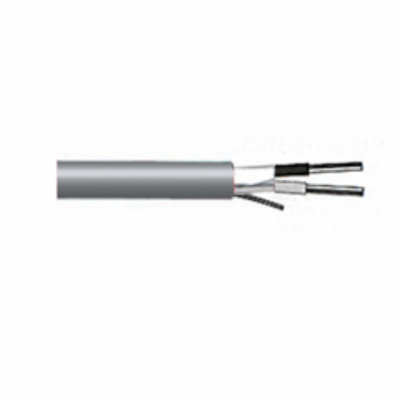

18-6C FPLR Riser, Fire Alarm, Stranded, Shielded, 500ft or 1000ft Spool

SKU FLR186CS

$

0.360000

0.360000

/ft
How will you purchase this wire?
0.360000 0.360000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18-6C FPLR Riser, Fire Alarm, Stranded, Shielded, 500ft or 1000ft Spool

Grouped product items
Color Length (ft.)
Gray Length 500 ft.
$180.00
Gray Length 1000 ft.
$360.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • # of Conductors

    6 Conductors

  • O.D. (Inches)

    0.23

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Multi-Conductor, Stranded Copper, Shielded, Riser, NEC Type FPLR Cable. 1000ft Spool.

Color:
Gray

Applications:
Wiring of fire alarms, smoke detectors, voice communications, burglar alarms, fire protective circuits.

Features:
Rated for use from -20°C to +75°C. Ripcord applied to all cables with round constructions. Suggested voltage rating: 300 volts.

Compliances:
Industry Compliances:
- NEC Articles 725 & 760
- NEC Standards 13 & 1424
- UL: -20°C to +75°C.
Flame Test Compliances:
- UL 1666

Conductor:
Stranded, fully annealed bare copper to ASTM B3

Insulation:
Polypropylene

Shield:
0.001 inch Aluminum/Mylar

Jacket:
Gray Premium-grade Polyvinyl Chloride (PVC)

Specifications*:

Size: 18 AWG
Number of Conductors: 6
Nominal Insulation Thickness: 0.009 inches
Nominal Jacket Thickness: 0.020 inches
Outside Diameter: 0.230 inches

*Data provided on this page is subject to change based on different manufacturers variances.
