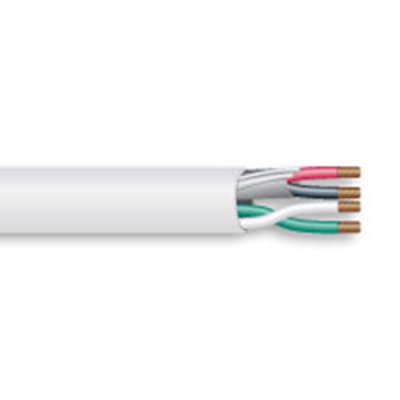

18-6C CMP Plenum, Security Cable, Stranded, Unshielded

SKU CMP186CU

$

0.394800

0.394800

/ft
How will you purchase this wire?
0.394800 0.394800
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18-6C CMP Plenum, Security Cable, Stranded, Unshielded

Grouped product items
Color Length (ft.)
White Length 500 ft.
$197.40
White Length 1000 ft.
$394.80
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • # of Conductors

    6 Conductors

  • O.D. (Inches)

    0.216

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Multi-Conductor, Unshielded, Plenum Security Cable, CMP Cable

Color:
White

Applications:
Access control, Video Surveillance/CCTV, Intercom, Security, Home Theater and Burglar Alarms.

Compliances:
- CL3P Cable: NEC Article 725 Type CL3P Cable (UL: 75°C, 150V)
- CMP Cable: NEC Article 800 Type CMP Cable (UL: 75°C, 300V)

Conductor:
Stranded, bare copper to ASTM B3, B8, and B286
Color code:  Black, Red, White, Green, Brown, Blue

Insulation:
Premium-grade, color-coded PVC

Jacket:
White Premium-grade PVC
0°C to +75°C

Specifications*:

Size: 18 AWG
Number of Conductors: 6
Conductor Stranding: 7/26
Nominal Insulation Thickness: 0.008 inches
Nominal Jacket Thickness: 0.015 inches
Outside Diameter: 0.216 inches

*Data provided on this page is subject to change based on different manufacturers variances.
