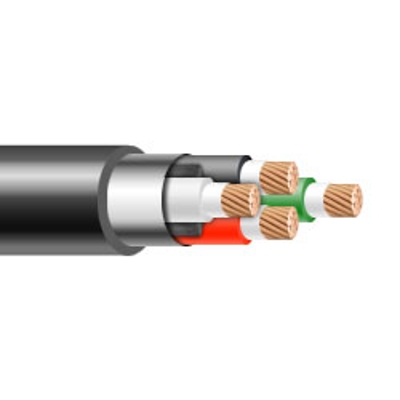

18/4 SJOOW Portable Cord 300V UL/CSA

SKU SJO18s4

$

0.840000

0.840000

/ft
How will you purchase this wire?
0.840000 0.840000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18/4 SJOOW Portable Cord 300V UL/CSA

Color Length (ft.) Price
Black

Length (ft.)

$0.84
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$420.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    SJOOW - 300V

  • Wire Size

    18 AWG

  • # of Conductors

    4 Conductors

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    0.33

  • Ampacity

    7

  • Voltage

    300V

  • Temp. Rating

    -40°C ~ 90°C

  • Insulation Material

    EPDM Rubber

  • Flexibility

    High Flexibility

  • Indoor/Outdoor Use

    Indoor, Outdoor

  • Shielded

    No

  • Standards

    UL Listed, CSA Certified, RoHS Compliant, MSHA Approved

  • Features

    Weather Resistant, Water Resistant, Oil Resistant

  • Color Code

    Black, White, Red, Green

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Black.

Applications:
SJOOW Flexible Portable Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery.

Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Water-resistant. UL Listed and CSA Certified for indoor and outdoor use. Sunlight-resistant. Temperature range: -40ºC to +90ºC

Standards:
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant

Construction:
Conductors:
18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.

Specifications*:

Size: 18 AWG
Number of Conductors: 4
Conductor Strand: 16/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 8.38 mm / 0.330 inches
Weight: 0.075 lbs per ft
Current Amps: 7

Color Code:
4 Conductors: Black, White, Red, Green

*Data provided on this page is subject to change based on different manufacturers variances.
