STO Flexible Portable Cord. Cut to length - sold by the Foot.

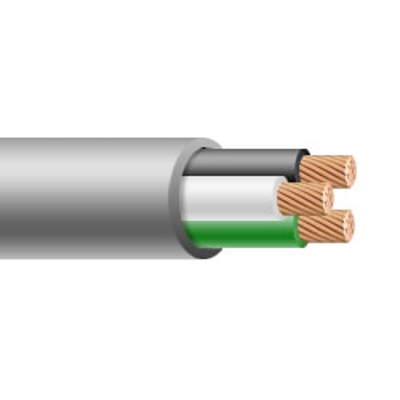

18/3 STO Flexible Portable Cord 600v UL/CSA
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put ups.
STO Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.
Polyvinylchloride (PVC), Gray or Yellow. Temperature range: -20ºC to +60ºC. Voltage rating: 600 Volts.
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)
18 through 6 AWG fully annealed stranded bare copper per ASTM B-174
Premium-grade, color-coded PVC.
Size: 18 AWG
Number of Conductors: 3
Conductor Strand: 16/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 9.27 mm / 0.365 inches
Weight: 0.080 lbs per ft
Current Amps: 10 (Green conductor for grounding only)
3 Conductors: Black, White, Green
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||18 AWG|
|# of Conductors||3 Conductors|
|Conductor Material||Bare Copper|
|Jacket Color||Black, Yellow|
