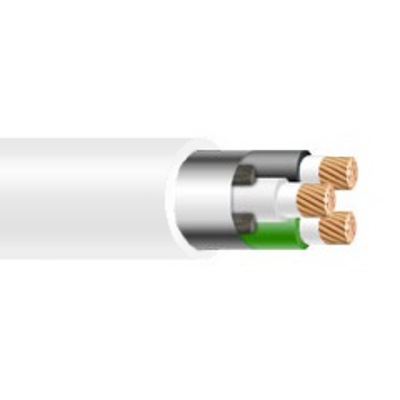

18/3 SJTOW Portable Cord 300V UL/CSA

SKU SJT18s3W

$

0.840000

0.840000

/ft
How will you purchase this wire?
0.840000 0.840000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18/3 SJTOW Portable Cord 300V UL/CSA

Color Length (ft.) Price
White

Length (ft.)

$0.84
add Add a length
Grouped product items
Color Length (ft.)
White Length 500 ft.
$420.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Jacket Color

    White

  • Wire Size

    18 AWG

  • # of Conductors

    3 Conductors

  • Conductor Material

    Bare Copper

  • O.D. (Inches)

    0.3

  • Ampacity

    10

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 15' to maximum 1000'. Please call for longer put ups.

Color:
White

Applications:
18/3 SJTOW Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.

Jacket:
Polyvinylchloride (PVC), White jacket . Temperature range: -40ºC to +60ºC or +105ºC. Voltage rating: 300 Volts. (**Please specify temperature rating in shipping instructions.)

Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone

Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)

Construction:
Conductors:
18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.

Specifications*:

Size: 18 AWG
Number of Conductors: 3
Conductor Strand: 16/30
Insulation Thickness: 0.762 mm / 0.030 inches
Outside Diameter: 7.62 mm / 0.30 inches
Weight: 0.054 lbs per ft
Current Amps: 10 (Green conductor for grounding only)

Color Code:
3 Conductors: Black, White, Green

*Data provided on this page is subject to change based on different manufacturers variances.
