18-2C FPLR Riser, Fire Alarm, Shielded, 500ft or 1000ft Spool
Product DetailsLearn everything you want to know about this product to make an informed purchase

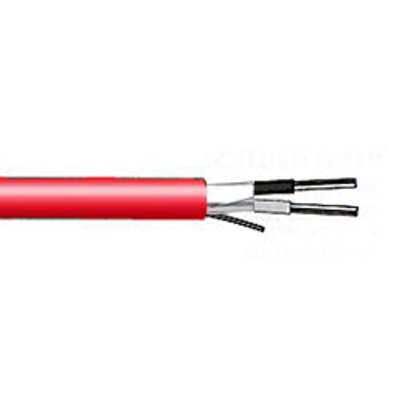

Multi-Conductor, Shielded, Riser, NEC Type FPLR Cable.
Wiring of fire alarms, smoke detectors, voice communications, burglar alarms, fire protective circuits.
Two bare copper insulated conductors with an overall shield and a drain. The assembly has an overall jacket. Rated for use from -20°C to +60°C. Suggested voltage rating: 300 volts.
- NEC Articles 760
- UL Standard 1424
Flame Test Compliances:
- UL 1666 Riser Flame Test
Solid, fully annealed bare copper to ASTM B3
0.001 inch Aluminum/Mylar
24 AWG Solid Tined Copper
Red Premium-grade Polyvinyl Chloride (PVC)
Size: 18 AWG
Number of Conductors: 2
Nominal Insulation Thickness: 0.008 inches
Nominal Jacket Thickness: 0.014 inches
Outside Diameter: 0.151 inches
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||18 AWG|
|# of Conductors||2 Conductors|
