18-2C FPLP Plenum, Fire Alarm, Shielded, 500ft or 1000ft Spool
$
0.208000
0.208000
/ftProduct Details
Learn everything you want to know about this product to make an informed purchase
Specifications
-
Wire Size
18 AWG
-
O.D. (Inches)
0.158
More information

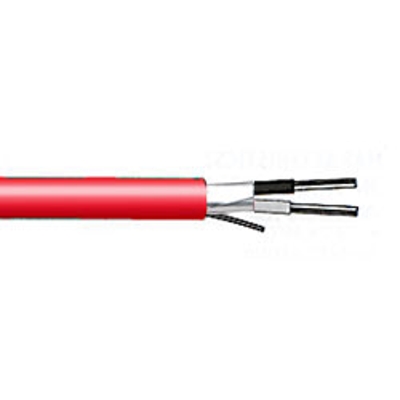

Multi-Conductor, Shielded, Plenum, NEC Type FPLP Cable.
Color:
Red
Applications:
Wiring of fire alarms, smoke detectors, voice communications, burglar alarms, fire protective circuits.
Features:
Two bare copper insulated conductors with an overall shield and a drain. The assembly has an overall jacket. Rated for use from -20°C to +75°C. Suggested voltage rating: 300 volts.
Compliances:
Industry Compliances:
- NEC Articles 760
- UL Standard 1424
Flame Test Compliances:
- NFPA 262 Steiner Tunnel Smoke and Flame Test
Conductor:
Solid, fully annealed bare copper to ASTM B3
Insulation:
PVC
Shield:
0.001 inch Aluminum/Mylar
Drain:
24 AWG Solid Tined Copper
Jacket:
Red Premium-grade Polyvinyl Chloride (PVC)
Specifications*:
Size: 18 AWG
Number of Conductors: 2
Nominal Insulation Thickness: 0.010 inches
Nominal Jacket Thickness: 0.014 inches
Outside Diameter: 0.158 inches
*Data provided on this page is subject to change based on different manufacturers variances.
