22 AWG 2 Conductor shielded data pair + 2C 18 AWG unshielded power; overall white LSPVC jacket.

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
250 ft.
500 ft.
1000 ft.
Add a length

 Free Shipping on all orders over $1000

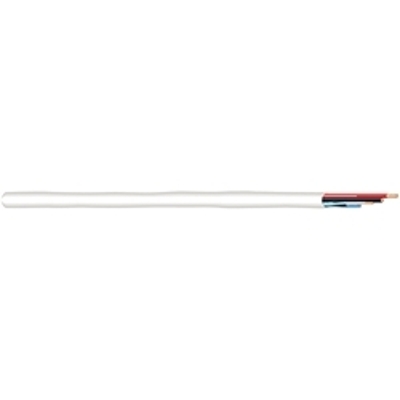

18/2C + 22/1PR Plenum Composite Cable, White LSPVC Jacket, 300V, 75C, CMP

SKU
EQAXLINKPWHT

Product Details

Learn everything you want to know about this product to make an informed purchase

Construction:
Composite: 22 AWG 2 Conductor shielded data pair + 18 AWG 2 Conductor Unshielded Power; Overall White LSPVC Jacket.

Applications:
Universal Control Cables for room and building automation proprietary systems such as AMX, Crestron and Elan. Plenum Rated.

Conductor:
Stranded Bare Copper

Insulation:
Low Smoke Polyvinyl Chloride (LSPVC)

Jacket:
Low Smoke Polyvinyl Chloride (LSPVC)
White

Shielding:
Foil shield, plus tinned copper drain wire

NEC Rating:
UL Listed CMP

Specifications*:

Size: 18 AWG + 22 AWG
Number of Conductors: 4 total
Outside Diameter: 0.190 Inches
Weight: 0.025 per ft.

Commonly known as AXLINK-P

Lutron® Cable Equivalent Part Numbers: AXLINK-P

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size18 AWG
O.D. (Inches)0.19
