$0.45 /ft.

In Stock

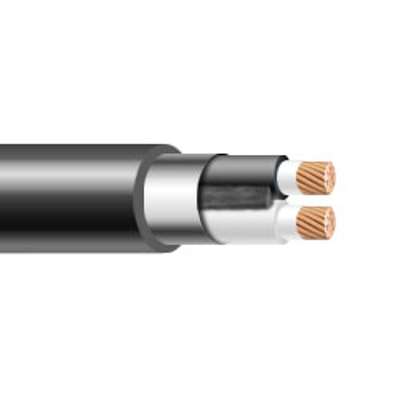

18/2 SJEOOW Portable Cord 300V Ul/CSA

Min: 20 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

18/2 SJEOOW Portable Cord 300V Ul/CSA

SKU
SJEO18s2-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Color:
Black.

Applications:
SJEOOW Flexible Portable Cord applications include include wiring for industrial machinery, washing machines and various other large appliances, heavy-duty tools, motors, and temporary electrical power and lighting installations for construction sites.

Features:
Excellent resistance to oil and moisture. High flexibility. Excellent abrasion resistance. Water-resistant. Sunlight-resistant. Temperature range: -50ºC to +105ºC

Standards:
UL Flexible Cord - UL Standard 62
CSA Flexible Cord - C22.2-49
NEC Article 501.140 Class I Div. 2
NEC Article 400
Federal Spec JC580
MSHA Approved
EPA 40 CFR, Part 26, Subject C, heavy metals per Table 1, TCLP method

Construction:
Conductors:
Fully annealed stranded bare copper per ASTM B-174
Insulation:
TPE

Specifications*:

Size: 18 AWG
Number of Conductors: 2
Conductor Strand: 16/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 7.24 mm / 0.285 inches
Weight: 0.04 lbs per ft
Current Amps: 10

Color Code:
2 Conductors: Black, White

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size18 AWG
# of Conductors2 Conductors
Conductor MaterialBare Copper
Stranded or Solid Stranded
O.D. (Inches)0.285
Ampacity 13
Voltage300V
Temp. Rating-50°C ~ 105°C
Insulation MaterialTPE - Thermoplastic Elastomer
Jacket MaterialTPE - Thermoplastic Elastomer
Jacket ColorBlack
FlexibilityHigh Flexibility
Indoor/Outdoor UseIndoor, Outdoor
StandardsUL Listed, CSA Certified, MSHA Approved
FeaturesWeather Resistant, Water Resistant, Oil Resistant
