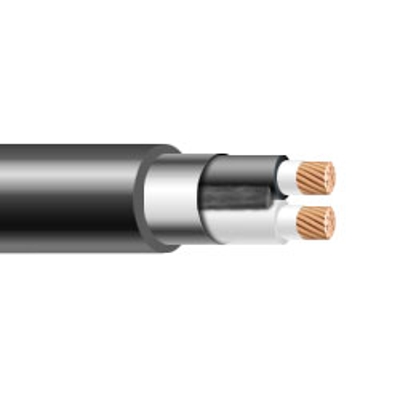

18/2 SEOOW Portable Cord 600V Ul/CSA

SKU SEO18s2

$

0.730000

0.730000

/ft
How will you purchase this wire?
0.730000 0.730000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18/2 SEOOW Portable Cord 600V Ul/CSA

Color Length (ft.) Price
Black

Length (ft.)

$0.73
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$365.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Jacket Color

    Black

  • Cable Type

    SEOOW - 600V

  • Wire Size

    18 AWG

  • # of Conductors

    2 Conductors

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    0.342

  • Ampacity

    10

  • Voltage

    600V

  • Temp. Rating

    -50°C ~ 105°C

  • Insulation Material

    TPE - Thermoplastic Elastomer

  • Jacket Material

    TPE - Thermoplastic Elastomer

  • Flexibility

    High Flexibility

  • Indoor/Outdoor Use

    Indoor, Outdoor

  • Standards

    UL Listed, CSA Certified

  • Features

    Weather Resistant, Water Resistant, Oil Resistant

  • Color Code

    Black, White

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Black.

Applications:
SEOOW Flexible Portable Cord applications include include wiring for industrial machinery, washing machines and various other large appliances, heavy-duty tools, motors, and temporary electrical power and lighting installations for construction sites.

Features:
Excellent resistance to oil and moisture. High flexibility. Excellent abrasion resistance. Water-resistant. Sunlight-resistant. Temperature range: -50ºC to +105ºC

Standards:
UL Flexible Cord - UL Standard 62
CSA Flexible Cord - C22.2-49
NEC Article 501.140 Class I Div. 2
NEC Article 400
Federal Spec JC580
Passes CSA FT2 Flame Test
MSHA Approved
EPA 40 CFR, Part 26, Subject C, heavy metals per Table 1, TCLP method

Construction:
Conductors:
Fully annealed stranded bare copper per ASTM B-174
Insulation:
TPE

Specifications*:

Size: 18 AWG
Number of Conductors: 2
Conductor Strand: 16/30
Insulation Thickness: 0.76 mm / 0.030 inches
Jacket Thickness: 1.65 mm / 0.065 inches
Outside Diameter: 8.69 mm / 0.342 inches
Weight: 0.065 lbs per ft
Current Amps: 10

Color Code:
2 Conductors: Black, White

*Data provided on this page is subject to change based on different manufacturers variances.
