18 Gauge 2 Conductor Duplex Brake Cable

Min: 100 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

18/2 Duplex Brake Cable

SKU
DBC18s2-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

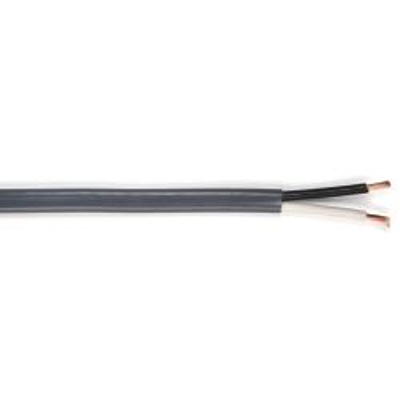

18/2 Duplex Brake Cable

Applications:
Two-conductor, general-purpose primary wires covered in a high quality PVC jacket. Especially ideal for use in truck, bus, tractor, light-duty boats, and general service applications. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128, SAE J378

Color Code:
2 Conductors: Black/White

Specifications*:

Size: 18 Gauge
Conductors: 2
Number of Strands: 16/30
Jacket Color: Gray
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated at –30°C (–22°F) to 105°C (221°F)
Outside Diameter: 0.178 x 0.276 inches
Weight: .034 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeBrake Cable
Wire Size18 AWG
# of Conductors2 Conductors
O.D. (Inches)0.178 x 0.276 in.
