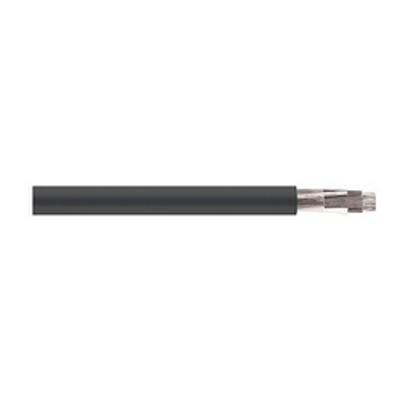

18/12C SDN Small Diameter Flexible Control Tray Cable

SKU SDN1812C

$

2.540000

2.540000

/ft
How will you purchase this wire?
2.540000 2.540000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18/12C SDN Small Diameter Flexible Control Tray Cable

Color Length (ft.) Price
Black

Length (ft.)

$2.54
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$1,270.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • # of Conductors

    12 Conductors

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Seoprene Compact 600 -40°C to 90°C 600V, Reduced Diameter Flexing/Control Cable

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50 ft. to maximum 1000 ft. Please call for longer put ups.

Color:
Black

Applications:
Cranes and hoists • High-flexing robotic systems • Pendant and reels

Feautures:
Specially engineered reduced diameter makes this cable ideal for tight or restricted areas • Nylon-armored conductors reduces stress and fatigue during continuous flexing

Compliances:
UL Standard 1277
RoHS

Conductor:•
18 AWG – 12 AWG fully annealed stranded bare copper
Class K stranding per ASTM B 174

Insulation:
Industrial grade Polyvinyl Chloride (PVC)
Nylon-armored protective sheath


Jacket:
Water, sunlight, and oil resistant Seoprene® Thermoplastic Elastomer (TPE)
Temperature range: -40°C to 90°C

Specifications*:

Size: 18 AWG
Number of Conductors: 12
Conductor Strand: 16/.0100
Outside Diameter: 0.484 inches
Net Weight: 0.137 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.
