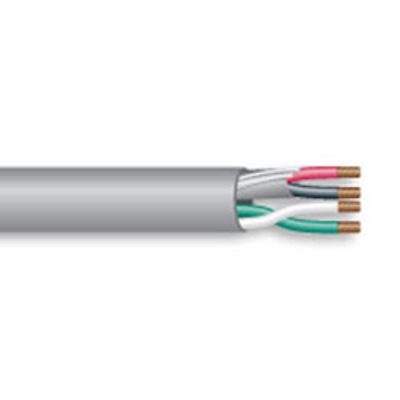

18-12C CMR Riser, Security Cable, Stranded, Unshielded

SKU CMR1812CU

$

1.086640

1.086640

/ft
How will you purchase this wire?
1.086640 1.086640
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

18-12C CMR Riser, Security Cable, Stranded, Unshielded

Grouped product items
Color Length (ft.)
Gray Length 500 ft.
$543.32
Gray Length 1000 ft.
$1,086.64
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • # of Conductors

    12 Conductors

  • O.D. (Inches)

    0.314

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Multi-Conductor, Unshielded, Riser Security Cable, CMR Cable

Color:
Gray

Applications:
Access control, Video Surveillance/CCTV, Intercom, Security, Home THeater and Burglar Alarms.

Compliances:
- CL3R Cable: NEC Article 725 Type CL3R Cable (UL: 75°C, 150V)
- CMR Cable: NEC Article 800 Type CMR Cable (UL: 75°C, 300V)

Conductor:
Stranded, bare copper to ASTM B3, B8, and B286

Conductor Color-Code:
Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan

Insulation:
Premium-grade, color-coded S-R-PVC

Jacket:
Gray Premium-grade Polyvinyl Chloride (PVC)
-20°C to +75°C Includes ripcord

Specifications*:

Size: 18 AWG
Number of Conductors: 12
Conductor Stranding: 7/26
Nominal Jacket Thickness: 0.015 inches
Outside Diameter: 0.314 inches

*Data provided on this page is subject to change based on different manufacturers variances.
